Used Reach Stacker
Used SMV Reach Stacker 2014
- Brand: SMV
- Model: SC4531TB5
- Year of Manufacture: 2014
- Engine: Scania
- Transmission: Dana Clark
- Capacity: 45 Ton (First Row), 31 Ton (Second Row)
- Operating Hours: 18,900
- Front Axle: Axletech / Meritor
- Condition: In Excellent Working Condition

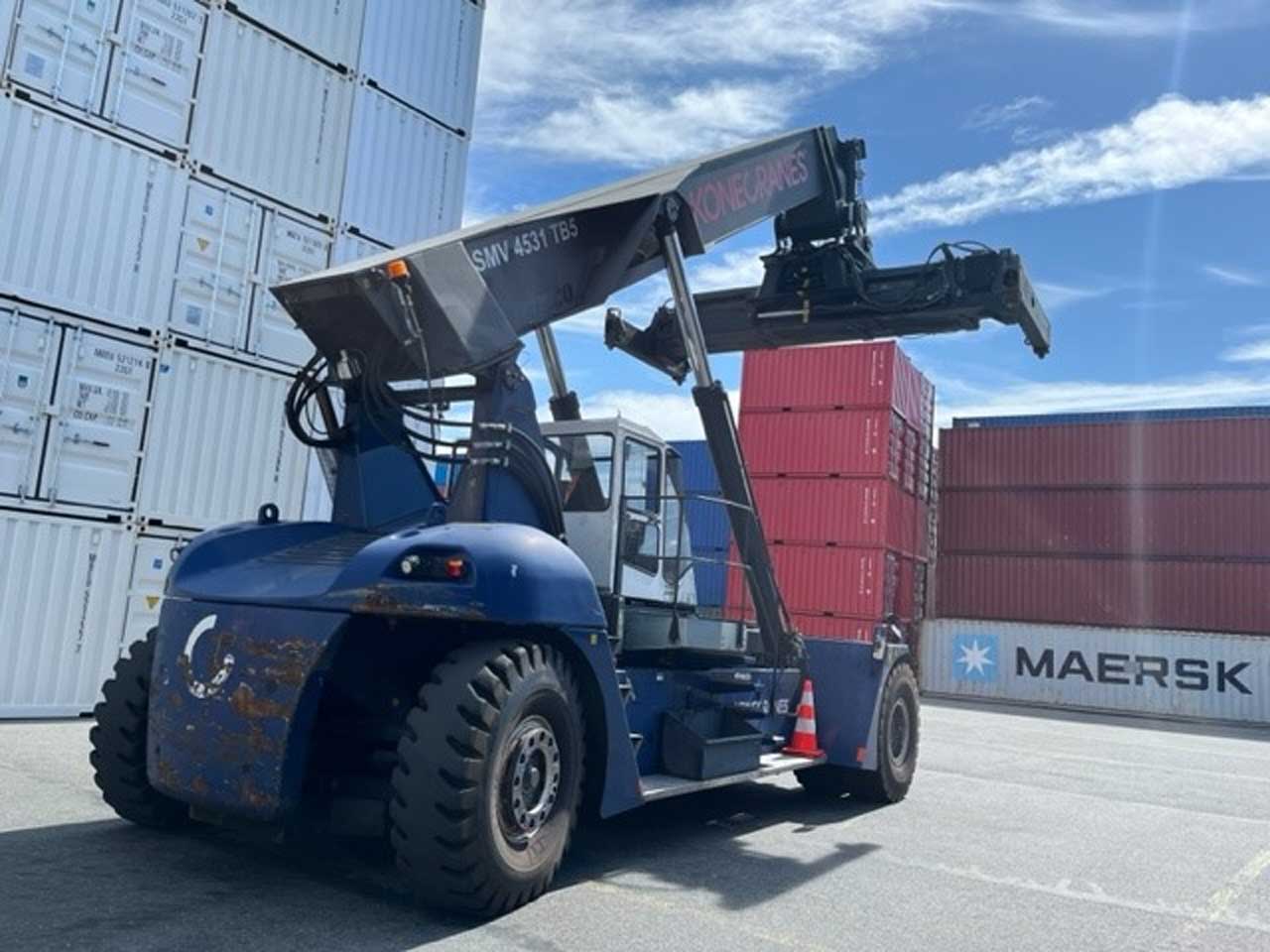

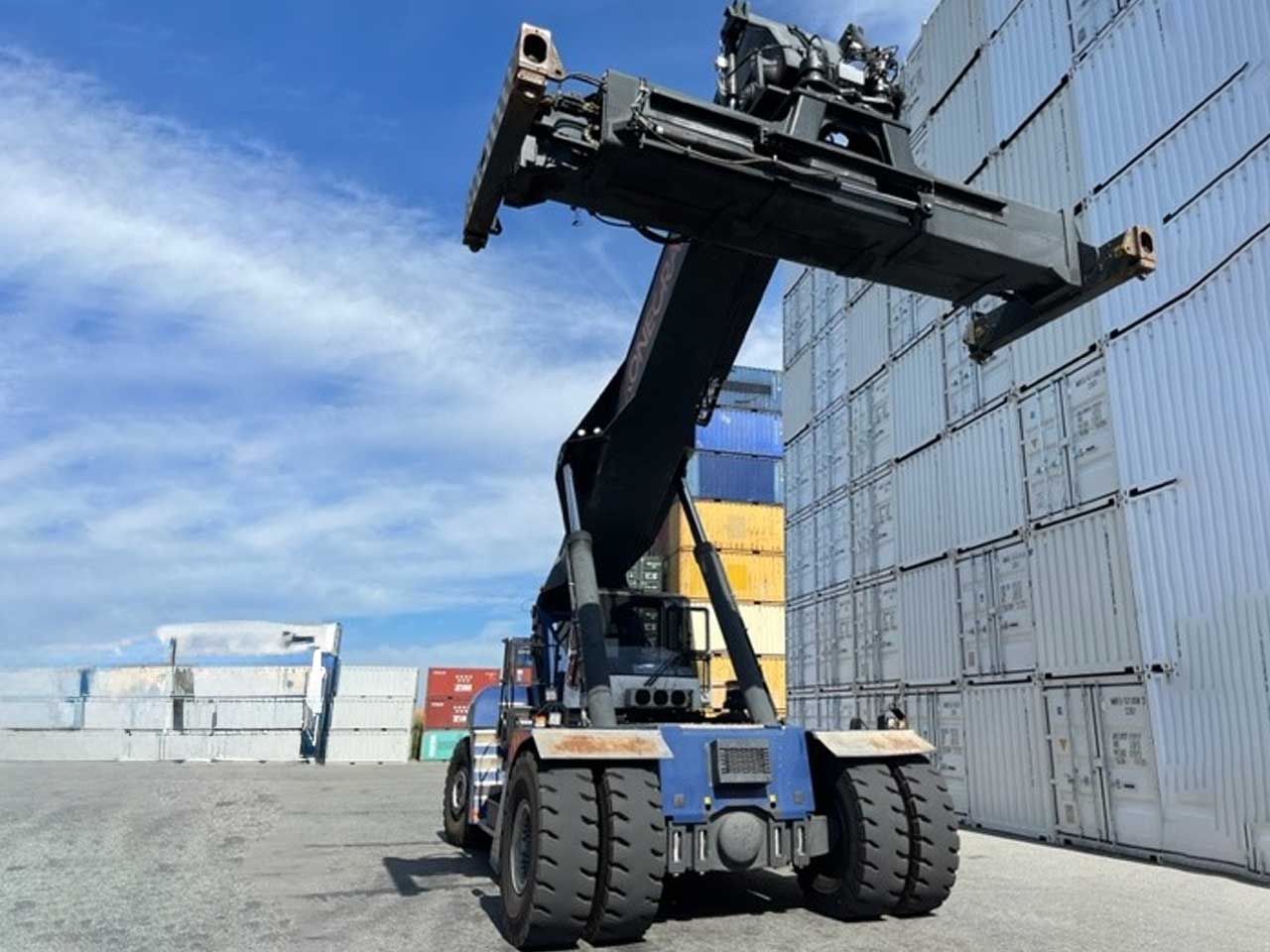

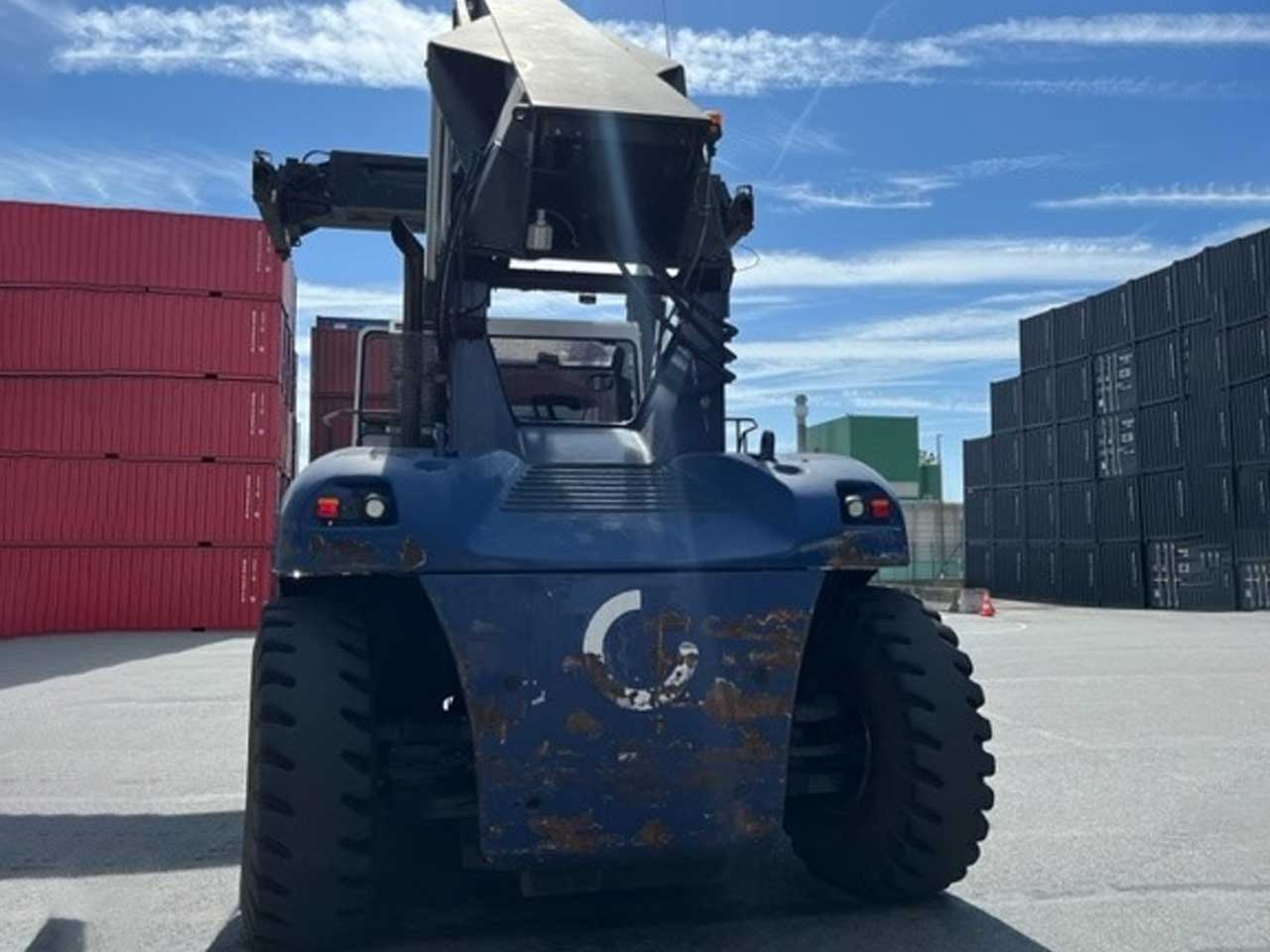

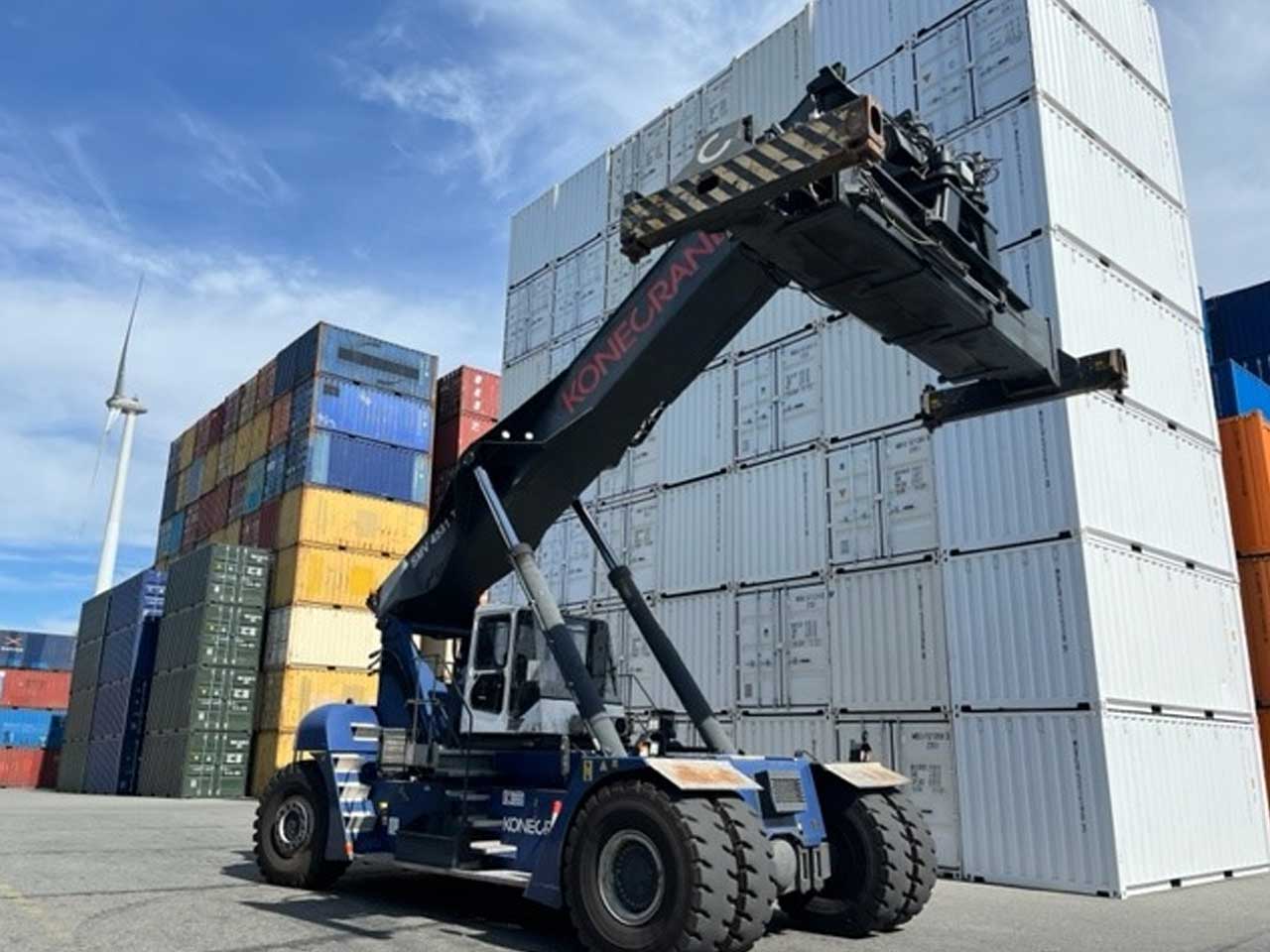

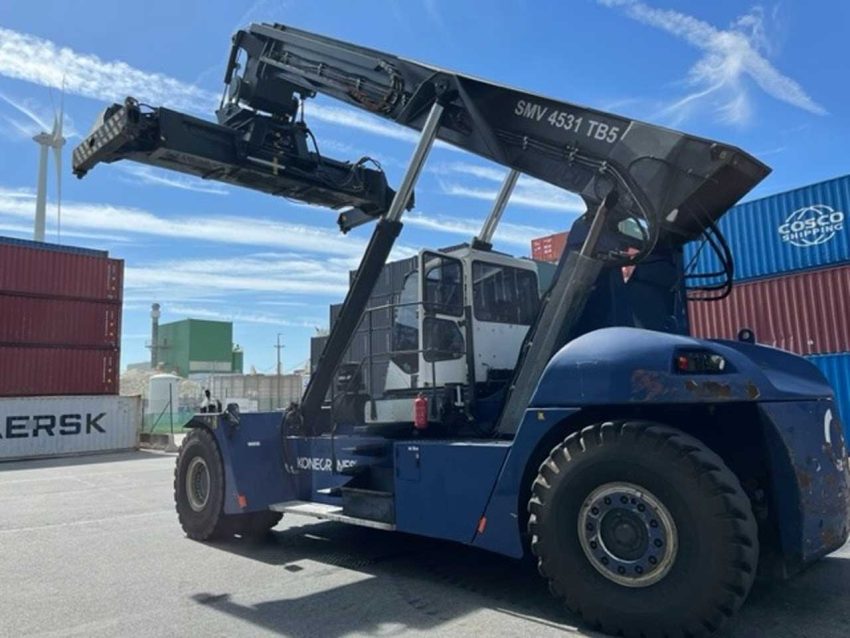

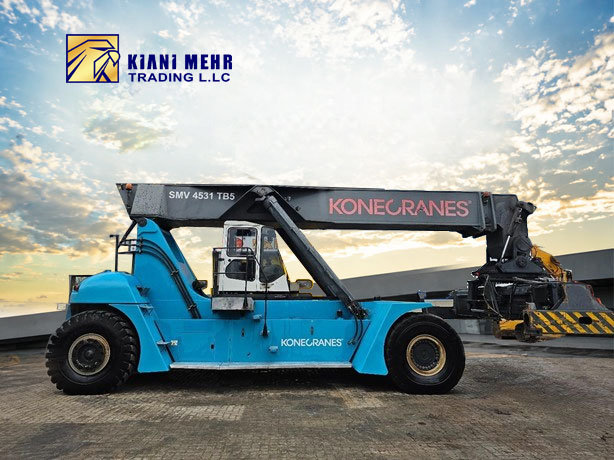

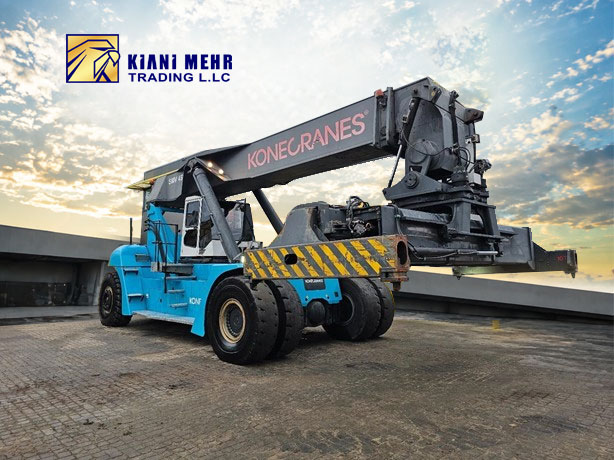

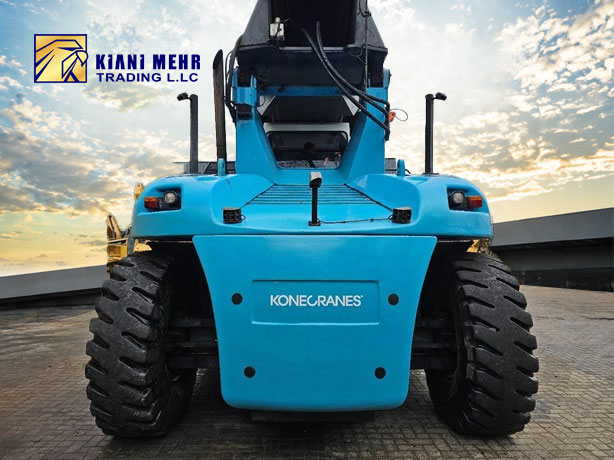

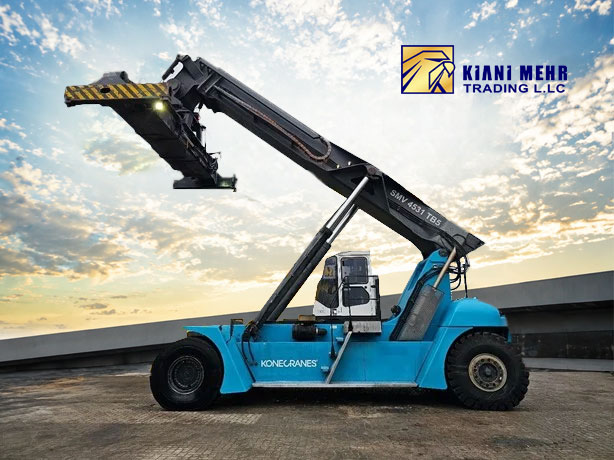

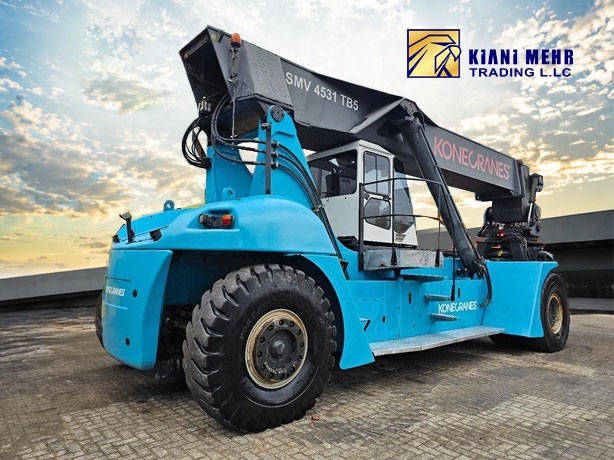

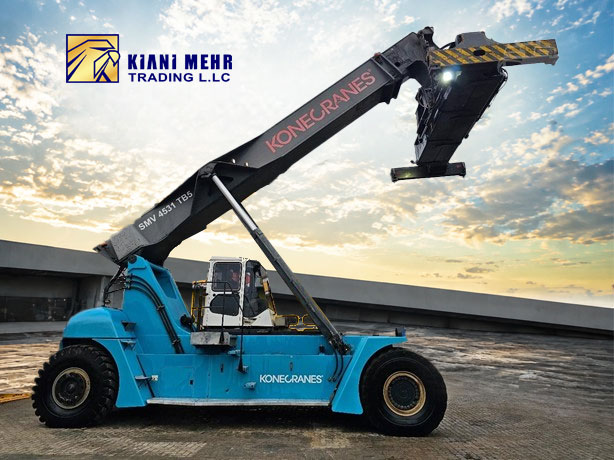

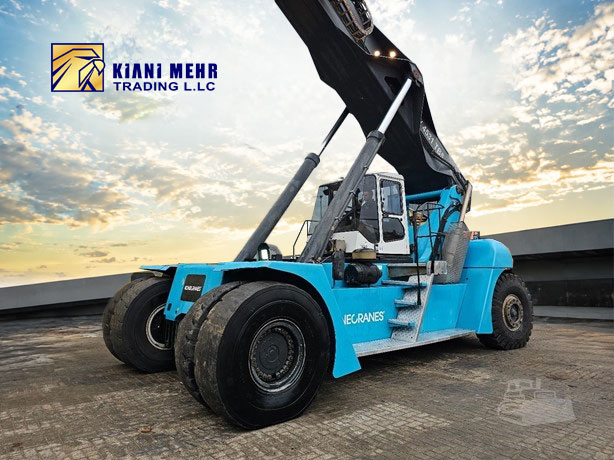

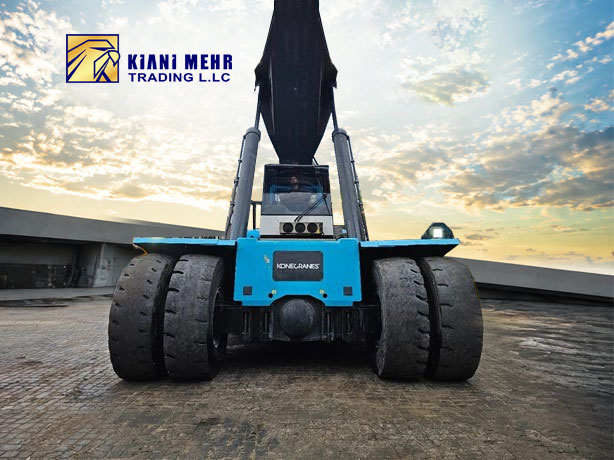

Used SMV 4531 TB5 Reach Stacker for Sale in Dubai – Made in Sweden
The SMV 4531 TB5 Reach Stacker, manufactured by Konecranes (SMV Lifttrucks), is a high‑performance container handling machine ideal for ports, rail terminals, warehouses, and heavy‑industry applications. With over 50 years of design and innovation experience behind it, this model is among the most powerful and reliable reach stackers in the world.
Technical Specifications
- Brand: SMV
- Model: SC4531TB5
- Year: 2014
- Operating Hours: 18,900 h

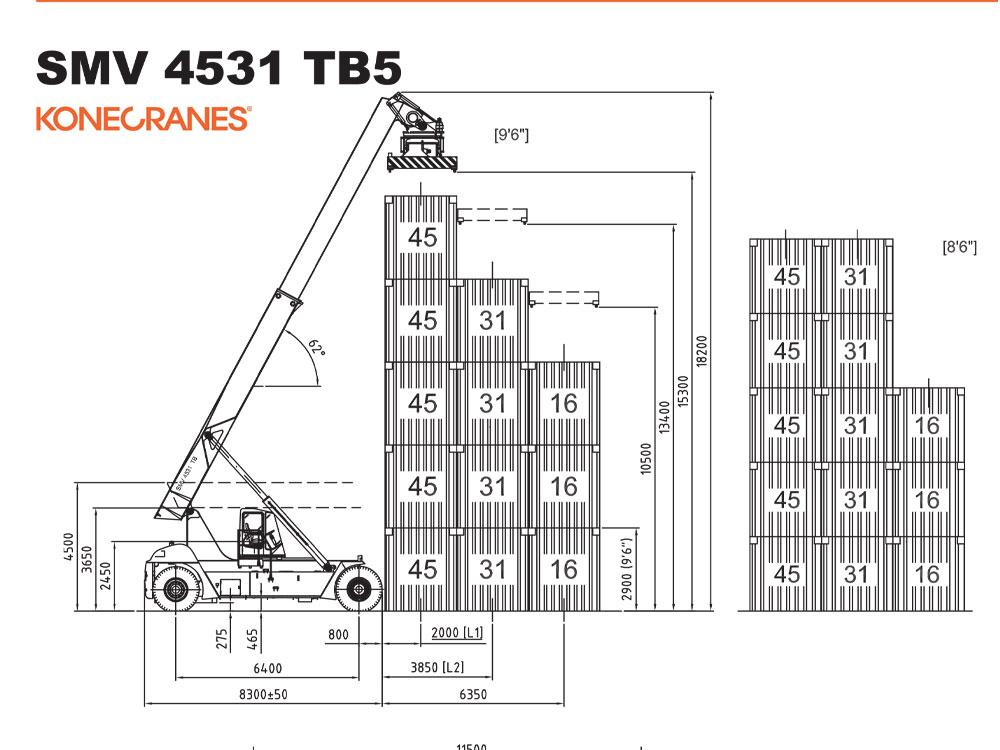

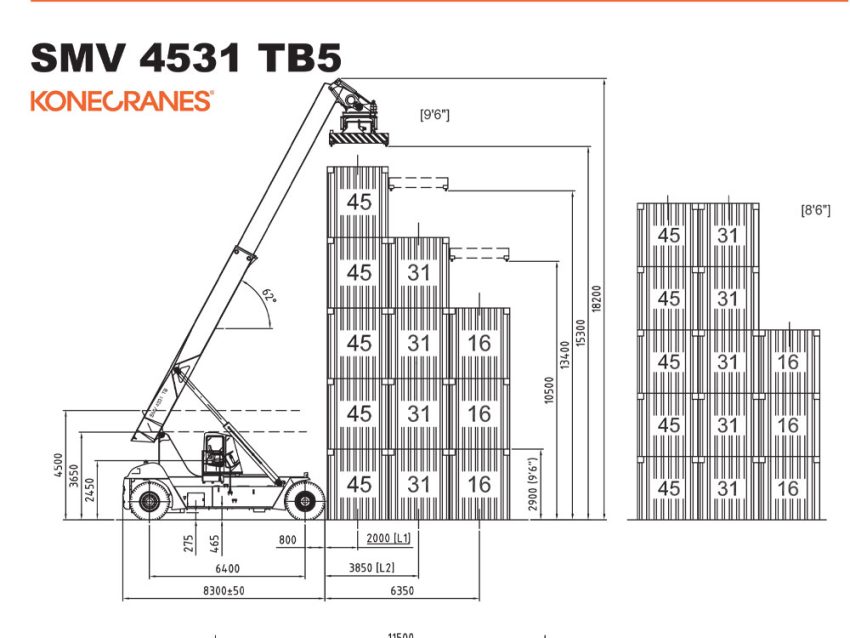

- Lifting capacity – 1st row: 45,000 kg
- Lifting capacity – 2nd row: 31,000 kg
- Lifting speed (no load / 40% load / full load): 0.38 / 0.35 / 0.23 m/s
- Travel speed (no load / full load): 24.5 / 22 km/h
- Total weight: 71,800 kg

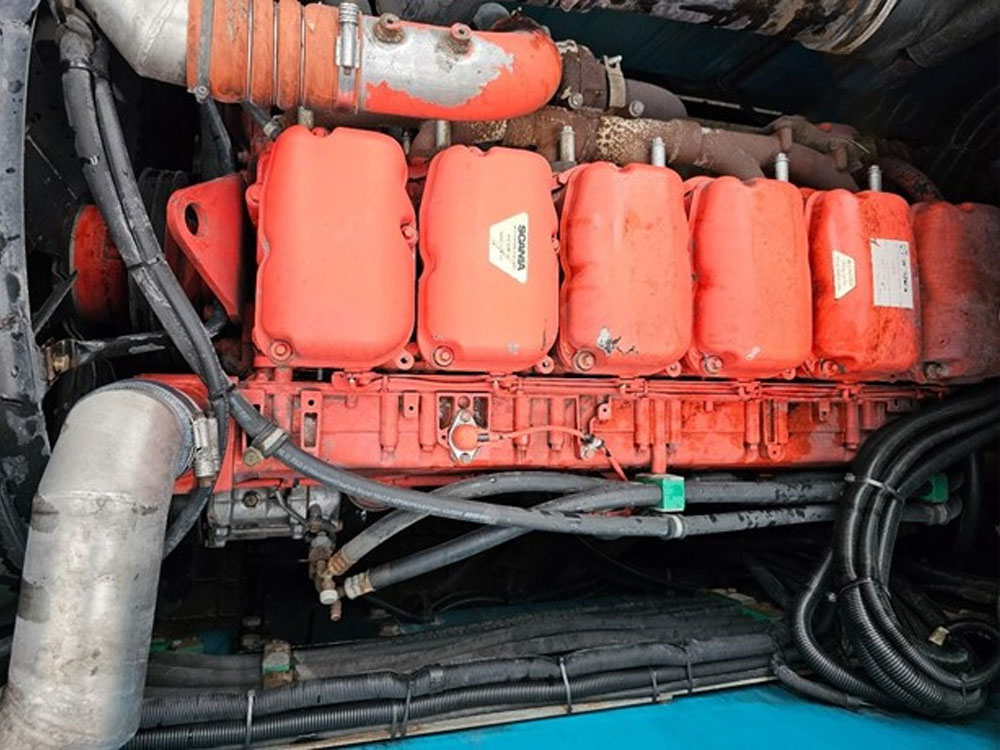

- Engine: Scania DI‑12‑54A, 243 kW (330 HP)
- Max torque: 1,589 Nm @ 1,400 rpm
- Transmission: Dana TE‑27000, 4F + 4R

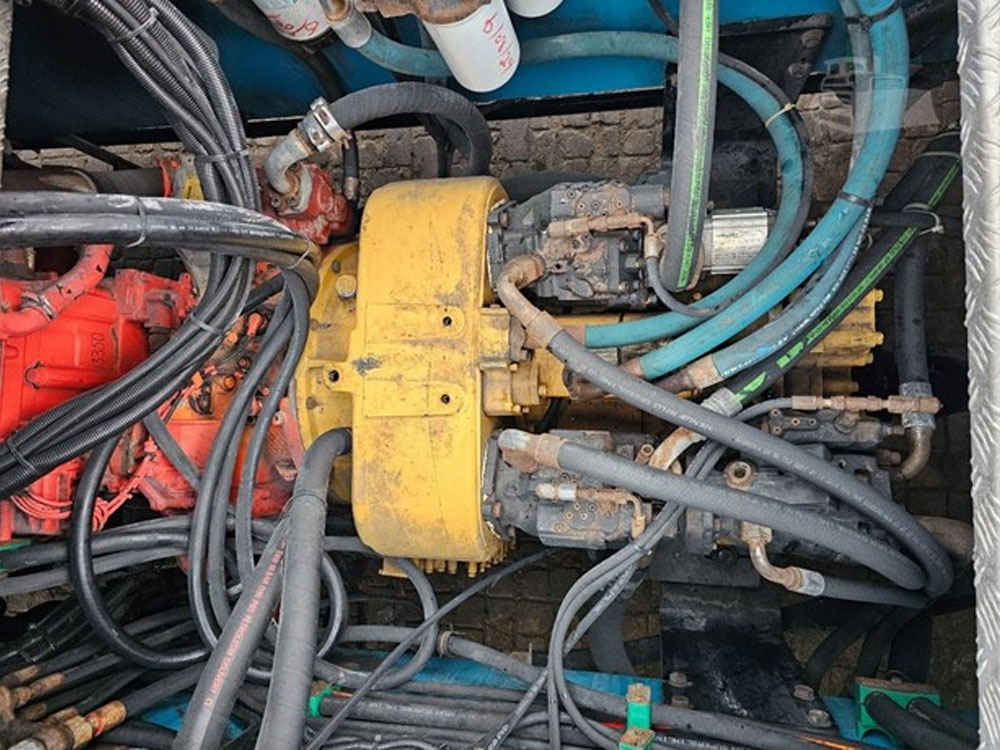

- Hydraulic system: Load-sensing, fuel‑efficient operation
- Fuel tank capacity: 650 L
- Hydraulic tank capacity: 850 L
- Brakes: Oil‑cooled disc brakes, maintenance‑free
- Front axle: Kessler D102 (optional Axletech / Meritor)

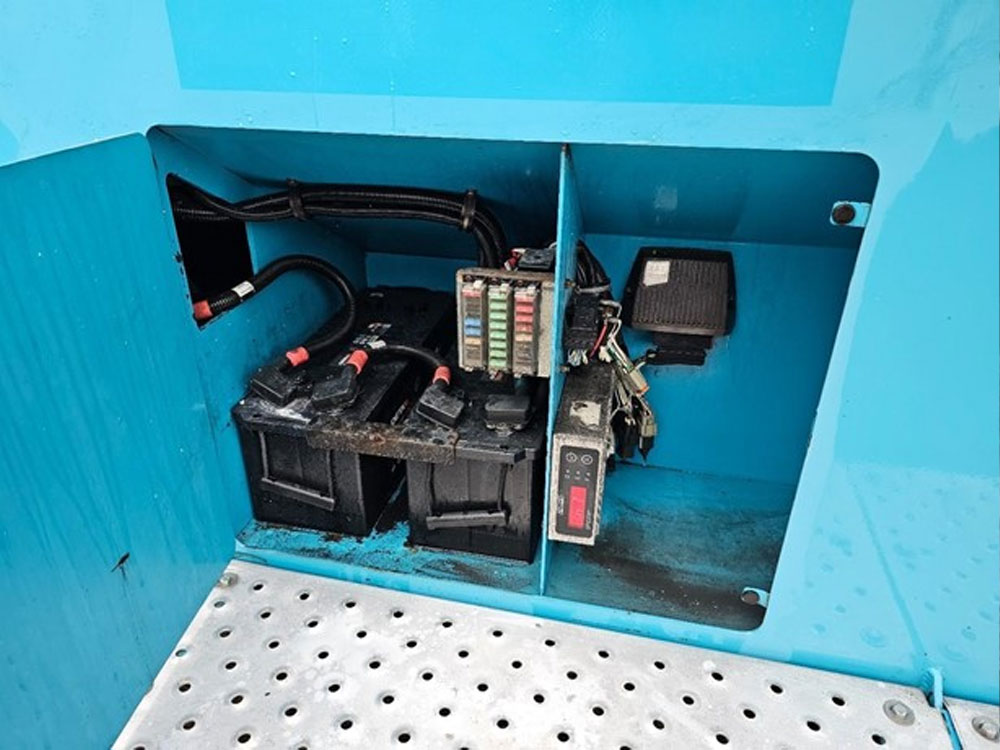

- Electrical system: 24 V
- Fuel consumption: 15–18 L/h

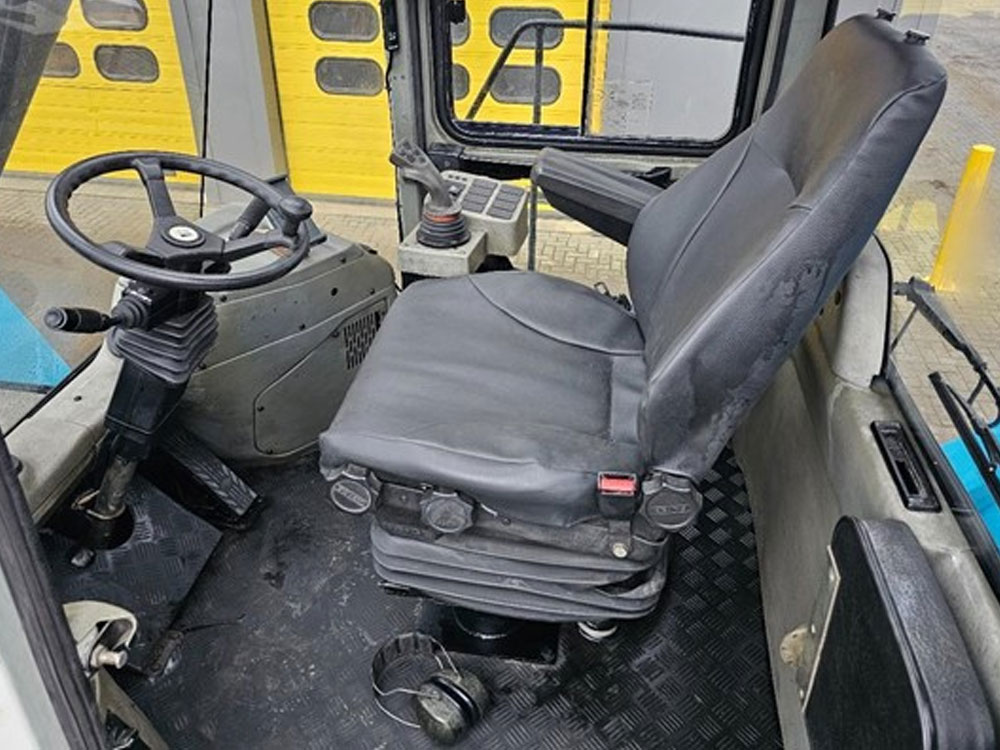

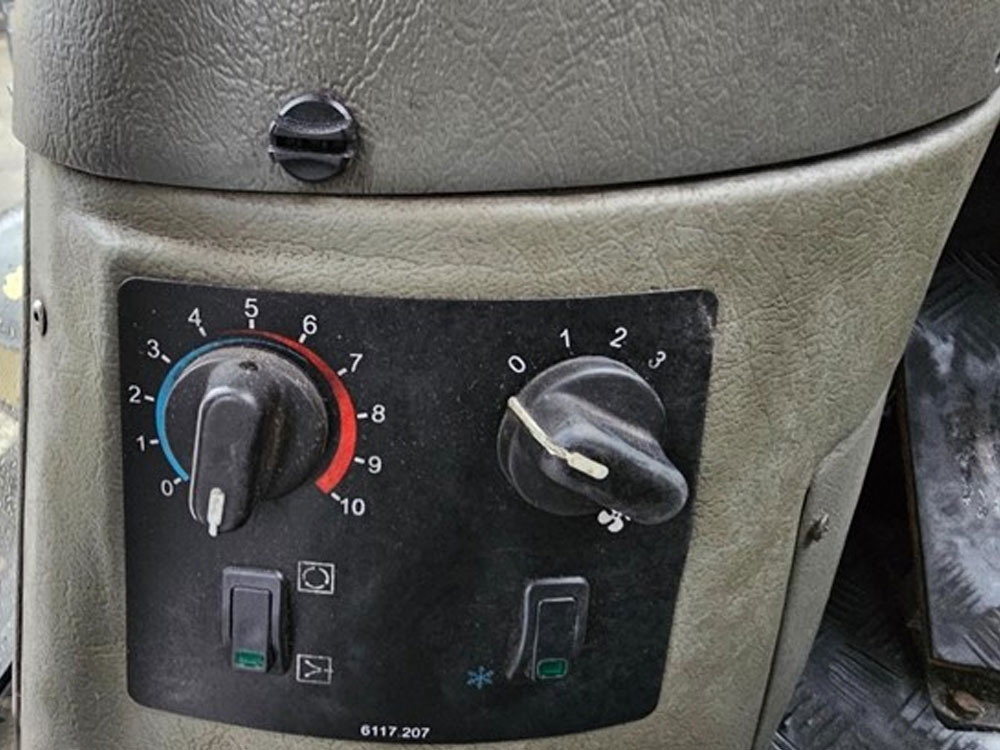

- Cabin: Ergonomic design with excellent visibility, low noise, air‑conditioned (optional)
Key Features
- Heavy‑duty Strength & Stability – Reinforced box‑type chassis for safe handling of up to 45‑ton containers.
- Powerful Engine & Smooth Transmission – Turbocharged Scania engine with optimal fuel efficiency; Dana powershift gearbox for smooth gear changes.
- Smart Hydraulics – Advanced load‑sensing technology reduces fuel use, delivering power only when needed.
- Low‑Maintenance Braking & Axles – Oil‑cooled disc brakes ensure consistent stopping power without daily servicing.

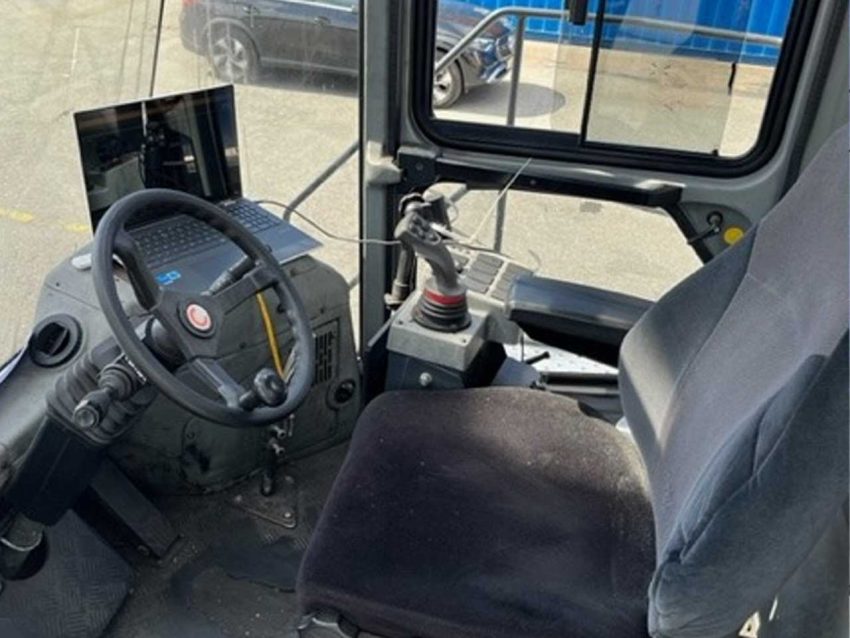

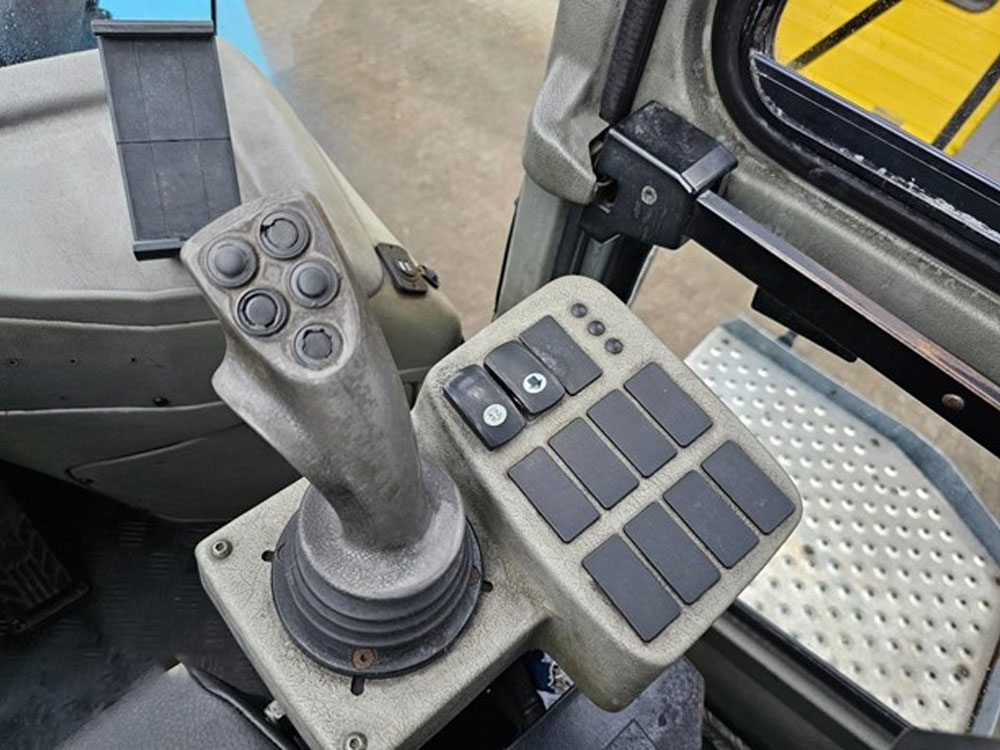

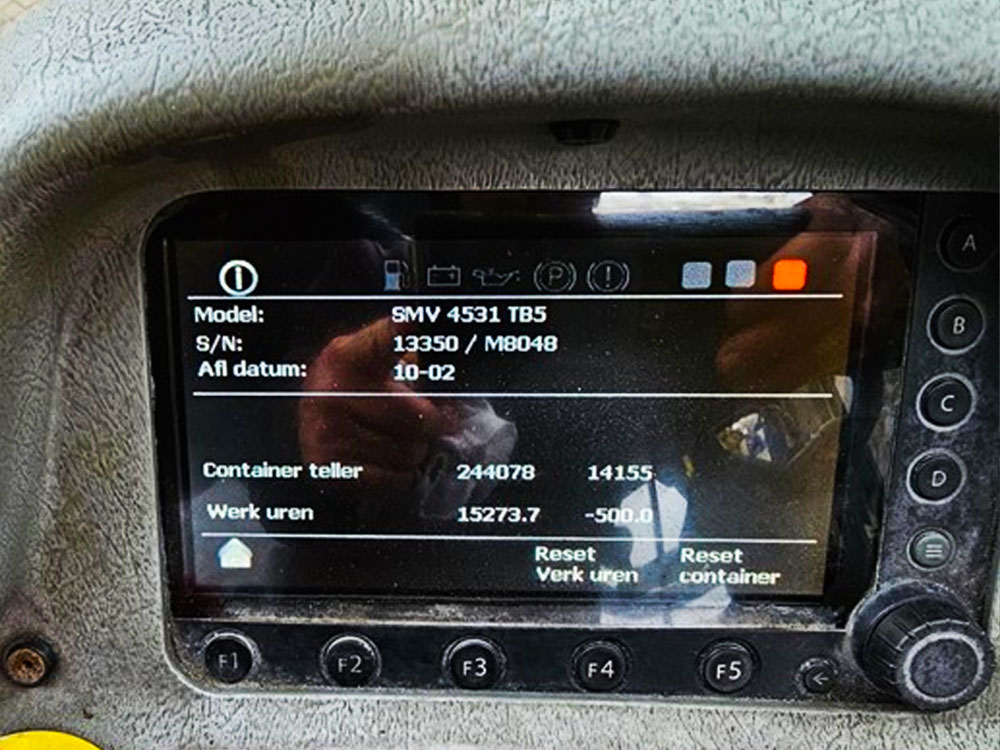

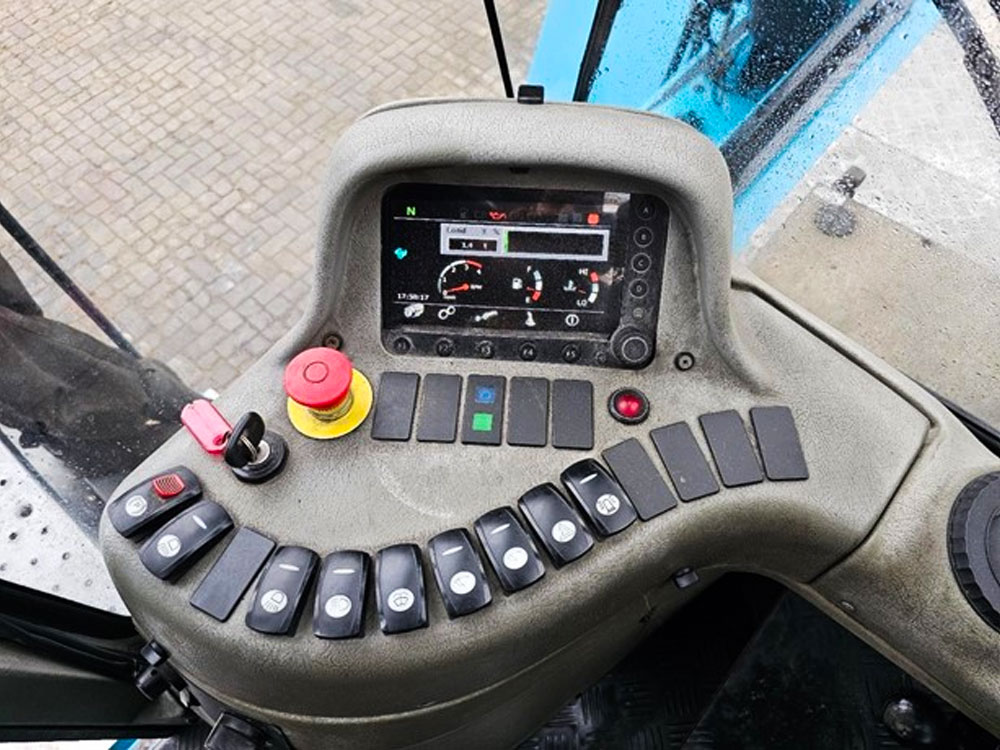

- Operator‑Focused Cabin – Wide‑view windows, minimal vibration, noise level of just 68 dB, joystick controls, and CanBus monitoring system for safety.
- Overload Protection – Electronic monitoring of weight and pressure for enhanced safety of operator and machine.
Applications
- Port container handling – Loading/unloading from ships, trucks, and yard areas.
- Rail terminals – Precise lifting from wagons.
- Logistics hubs – Multi‑row container stacking and heavy goods transport.
- Heavy industries – Steel coils, stone blocks, and large machinery transport.
Condition & Location
This used SMV 4531 TB5 Reach Stacker is in excellent working condition, ready for heavy‑duty operations.
Location: Dubai, UAE – available for delivery or export.
