New Kalmar Reach Stacker

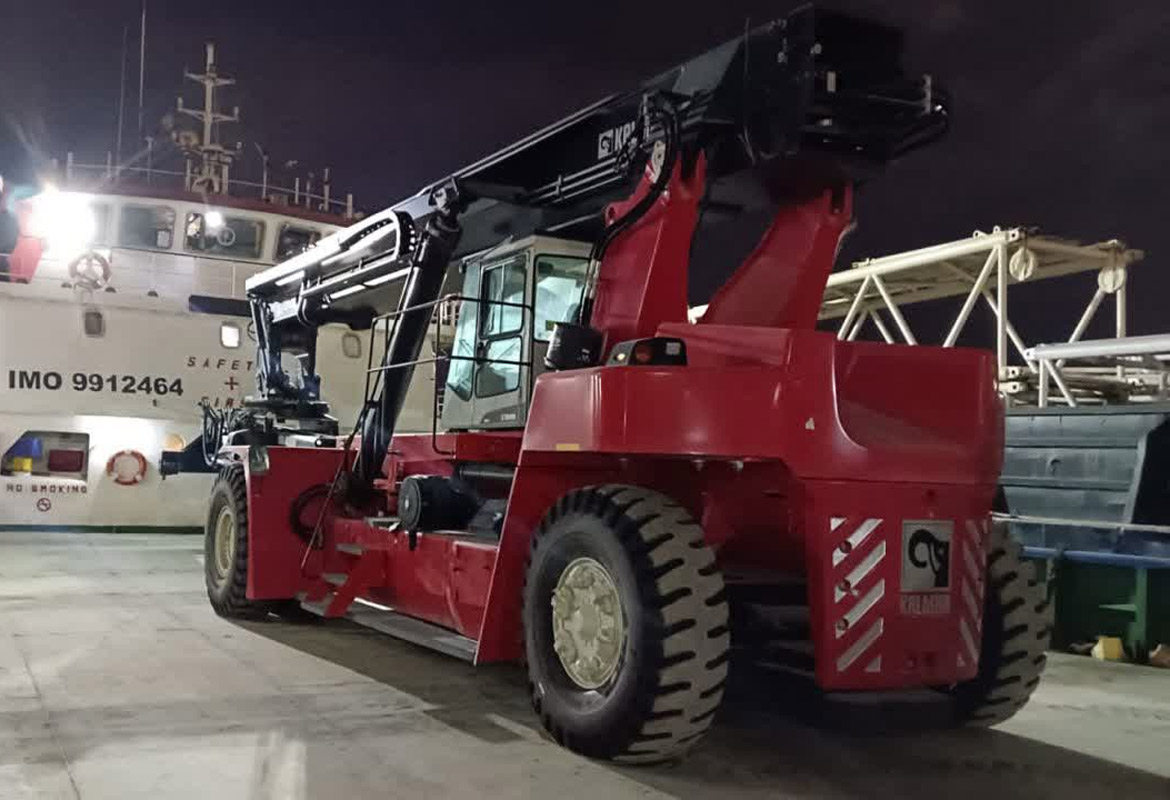

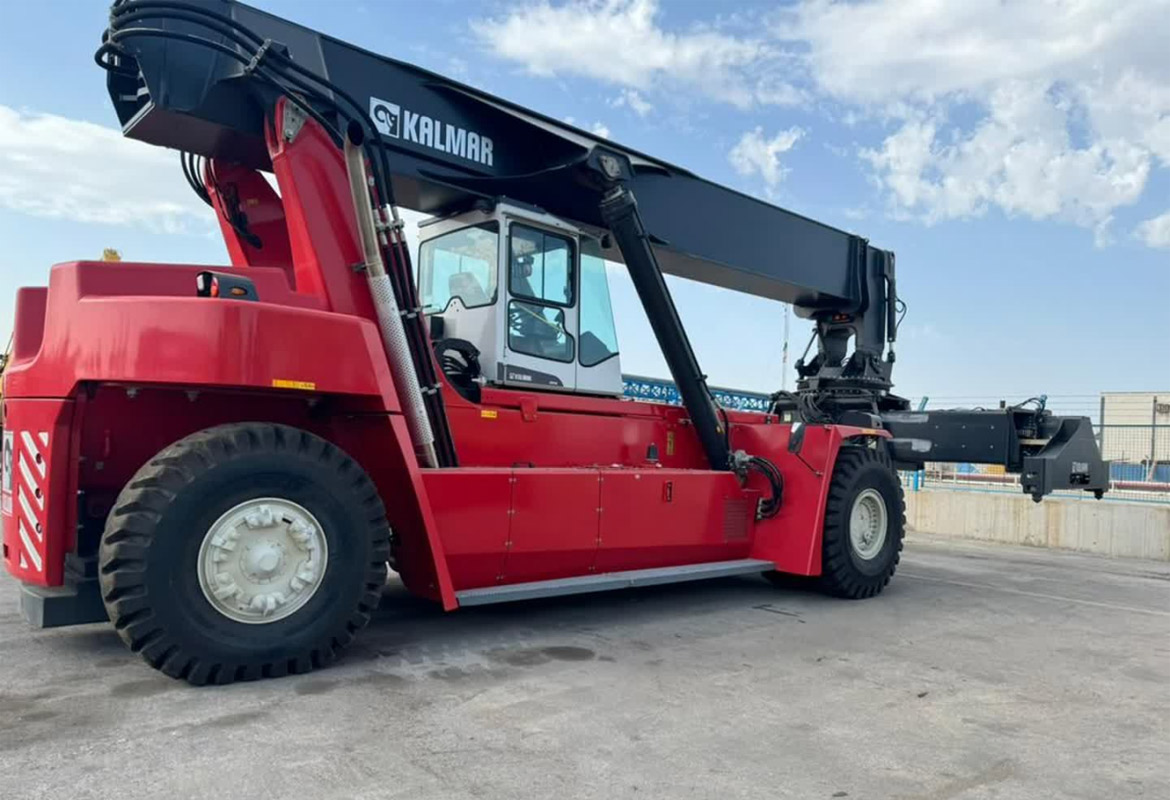

Kalmar DRU450‑62S5 – 45 Ton Reach Stacker (2023, Brand New)

The Kalmar DRU450‑62S5 is one of the most advanced next‑generation reach stackers, purpose‑built for port operations, container terminals, and heavy‑duty logistics centers. With a full rated capacity of 45 tons in the first row and advanced fuel‑saving technologies, it delivers exceptional performance in high‑traffic environments and harsh desert or tropical climates.

Key Technical Specifications:

• Year of Manufacture: 2023 (Brand New)
• Fuel Type: Diesel
• Engine: Volvo Penta TAD1150VE – 6‑cylinder, turbocharged, Stage V compliant, 285 kW (381 HP) @ 1,800 rpm, max torque ~1,800 Nm @ 1,100 rpm.
• Transmission: Dana Spicer–Clark Powershift, 4 forward / 4 reverse, smooth shifting under full load.
• Axles: Kessler D102 WDB heavy‑duty with locking differential.
• Capacity:

  • 1st Row: 45 tons
  • 2nd Row: 27 tons
  • 3rd Row: 13 tons
• Lift Height: Up to 15.1 m (stacking up to 5 high‑cube containers, 9’6”).
• Boom & Spreader: Hydraulic spreader ±195° rotation, side shift.
• Working Radius: ~6.5 m (first row), turning radius ~8.3 m.
• Dimensions (L×W×H): 11,200 × 4,150 × 3,650 mm.
• Hydraulic System: Parker Hannifin / Rexroth Load‑Sensing EcoDrive, 320 bar, electronic flow control.
• Chassis: Twist‑ and bend‑resistant steel frame; low center of gravity for stability.

Advantages:

• Fuel efficiency improvement up to 15% with advanced hydraulic load‑sensing.
• Environmentally compliant with EU Stage V / EPA Tier 4 Final standards.
• Exceptional operator safety with panoramic cab view, rear & top cameras, overload protection, and anti‑spill control.
• Superior cooling system with Tropical Kit, enabling optimal operation in extreme heat up to +50°C.
• Heavy‑duty design with corrosion‑resistant coating for marine and desert environments.

Applications:

• Container loading/unloading at busy ports and terminals.
• Rail container yard operations.
• Heavy industrial logistics and long‑term container stacking.
• Use in desert, coastal, and high‑temperature GCC environments.

Backed by Kalmar’s 70+ years of expertise and a global service network in over 120 countries, the DRU450‑62S5 is an unbeatable choice for operators seeking high power, precision handling, and long‑term reliability.
