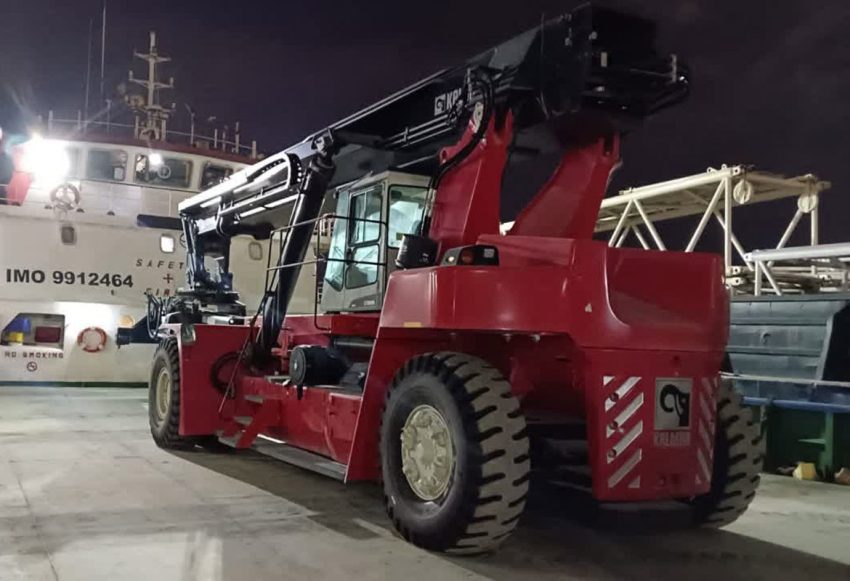

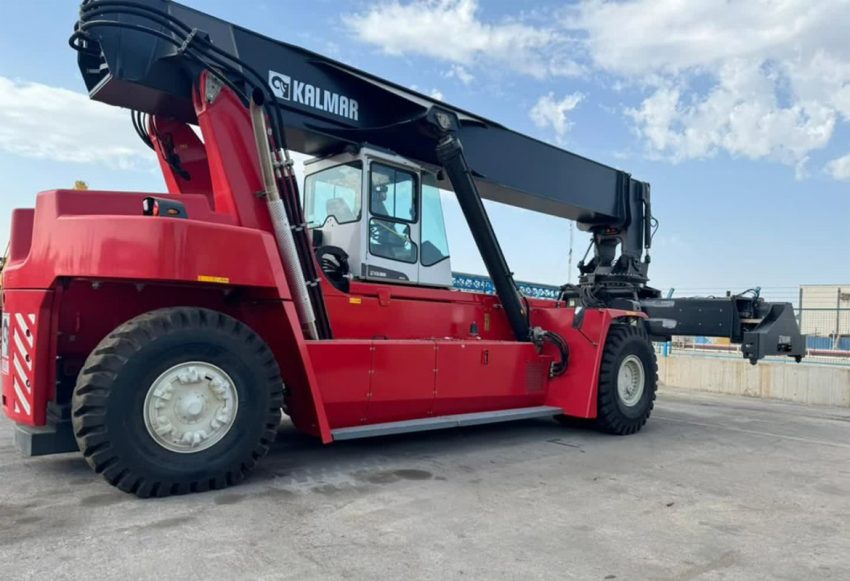

Kalmar Reach Stacker DRU450-62S5

If you are looking for a high‑performance container handler built for desert climates and heavy‑duty operations, the Kalmar DRU450‑62S5 Reach Stacker is the ideal choice. Designed for ports, rail container terminals, and large industrial logistics hubs, this model combines exceptional lifting capacity, cutting‑edge efficiency technology, and proven durability for the most demanding environments.

Key Specifications

• Brand: Kalmar
• Model: DRU450‑62S5 (Series DRU)
• Year: 2023 (Brand New)
• Location: Dubai, UAE
• Max Load Capacity:
  • 1st Row: 45 tons
  • 2nd Row: 27 tons
  • 3rd Row: 13 tons
• Engine: Volvo Penta TAD1150VE, 6‑cylinder diesel, turbocharged, intercooler
• Power Output: 285 kW (381 HP) @ 1,800 rpm
• Max Torque: ~1,800 Nm @ 1,100 rpm
• Fuel Consumption: 12–16 L/h
• Emission Standard: EU Stage V / U.S. EPA Tier 4 Final
• Transmission: Dana Spicer Powershift, 4F/4R, smooth under full load
• Hydraulic System: Parker Hannifin/Rexroth, 320 bar, Load‑Sensing & EcoDrive

Performance & Features

• Heavy-Duty Chassis: Twist‑resistant steel frame for handling dynamic heavy loads.
• High Lift Reach: Up to 15.1 meters (stacking up to 5 high, high‑cube containers).
• Fast Lifting Speed: 0.45 m/s up, 0.5 m/s down.
• Spreader Control: Hydraulic spreader with ±195° rotation and side‑shift capability.
• Superior Maneuverability: 8.3‑meter turning radius, excellent for high‑density yards.
• Tropical Kit: Optimized cooling system for operating in Dubai’s desert heat up to 50°C.
• Corrosion Protection: Epoxy marine‑grade coating for port and coastal conditions.

Safety & Operator Comfort

• Safety Systems: Overload Protection, Anti‑Spill Control, Emergency Brake, Collision Warning Sensors, Rear and Overhead Cameras.
• Ergonomic Cabin: Wide‑view design, air‑conditioned, pneumatic seat, joystick controls, dust‑proof filters.
• Low Noise & Vibration: Acoustic and thermal insulation for long operator shifts.

Applications

• Loading & unloading 20, 40, and 45‑foot containers in busy ports and terminals.
• Rail container handling.
• Heavy industrial logistics (petrochemical, steel, and manufacturing sectors).
• Multi‑tier container stacking for long‑term storage.
• Bulk and oversized cargo handling in specialized yards.

Why Choose the Kalmar DRU450‑62S5 in Dubai?

• Perfect for Gulf Climates: Equipped with tropical cooling and dust‑resistant filtration, ideal for extreme heat and sand‑laden environments.
• Fuel‑Efficient Power: Advanced Volvo Penta Stage V engine with up to 15% fuel savings.
• Proven Global Brand: Kalmar is trusted in over 120 countries for port and container‑handling excellence.

For Sale in Dubai – Immediate Availability

Contact us today to arrange an inspection or request full pricing details for this brand‑new 2023 Kalmar DRU450‑62S5 Reach Stacker.
