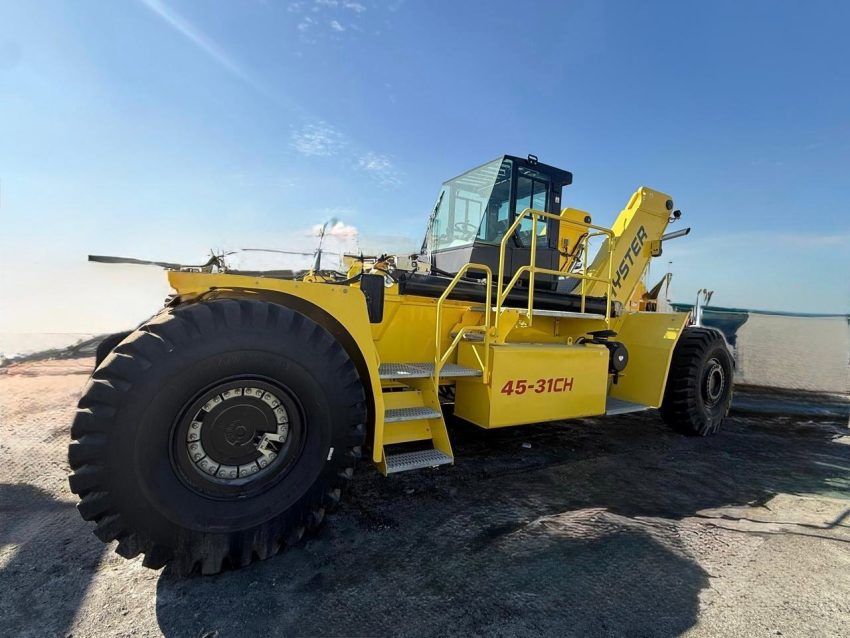

Hyster RS45-31CH Reach Stacker
Hyster RS45-31CH Reach Stacker 45 Ton
for Sale in UAE | Built for Heavy Port Operations
- Brand: Hyster
- Model: RS45-31CH
- Capacity of Loading: 45 Ton
- Year of Manufacture: 2025
- Engine Model : Cummins /QSL9 227
- Transmission : Spicer Off- Highway / TE-27
- Lifting height: 14.85 m
- Maximum horizontal reach: 18.11 m
- Nominal load at COG: 45,000 kg @ 1200 mm load center
- Turning radius: 8.42 m
- Total width: 4,220 mm
- Construction height (overall height): 4,700 mm
- Wheelbase: 6,200 mm
- Travel speed (with / without load): 20 / 23 km/h
- Operating weight: approx. 73,400 kg

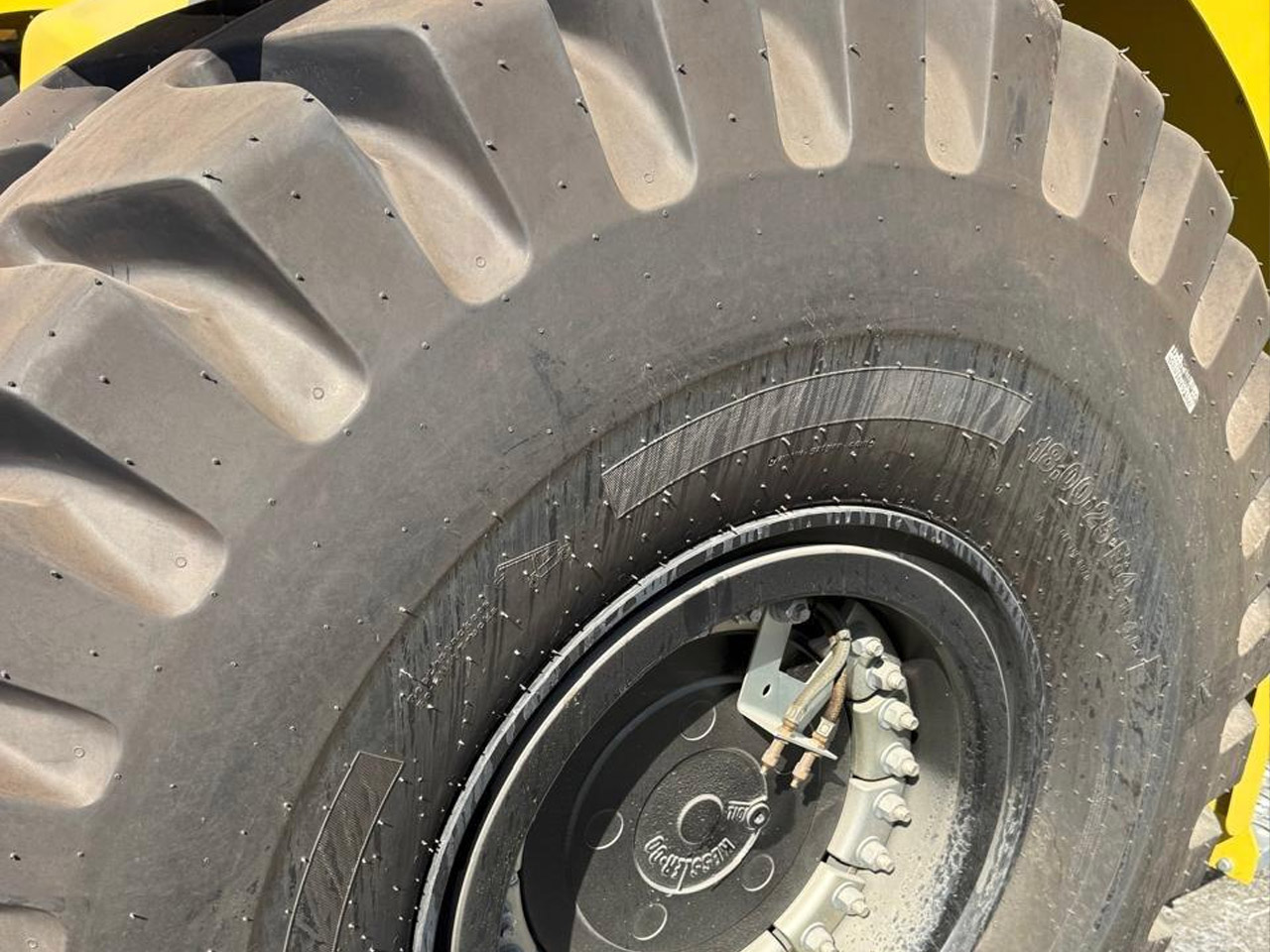

- Tyres configuration: 4x / 2
Hyster RS45‑31CH Reach Stacker 45T (2025)
Hyster RS45-31CH Reach Stacker is a heavy-duty container handling machine designed for ports, container terminals, and high-capacity logistics yards.
With a 45-ton lifting capacity, maximum lifting height of 14.85 m, and horizontal reach of 18.11 m, it enables safe and efficient handling of fully loaded containers in demanding operations.
Powered by a Cummins QSL9 engine (227 kW) and equipped with a Spicer Off-Highway TE-27 transmission, this machine delivers strong, reliable performance under continuous heavy-duty working conditions.
Its robust chassis, optimized turning radius, and stable travel speed make it a dependable solution for high-intensity port operations.
The RS45-31CH is a professional-grade reach stacker built for operators who prioritize power, durability, and operational efficiency.
Main Applications
- Handling 20ft, 40ft, and heavy 45ft containers
- Ideal for ports, dry ports, container yards, and free zones in the UAE
- High stacking and deep-row container operations
- Continuous heavy-duty daily use
Real Benefits
- Reliable 45-ton lifting power – operators work with confidence, not doubt
- Long horizontal reach – fewer extra moves, faster yard operations
- High stability under full load – reduced risk of tipping or damage
- Proven industrial powertrain – Cummins engine and Spicer transmission ensure reliability
Reach Stacker Technical Specifications
General Information
- Brand: Hyster
- Model: RS45-31CH
- Year of Manufacture: 2025
- Machine Type: Reach Stacker
Load Capacity
- Rated Load Capacity: 45,000 kg (45 Ton)
- Nominal Load at COG: 45,000 kg @ 1,200 mm load center
Lifting & Reach Performance
- Maximum Lifting Height: 14.85 m
- Maximum Horizontal Reach: 18.11 m
Powertrain
- Engine Model: Cummins QSL9 – 227
- Transmission: Spicer Off-Highway TE-27
Dimensions
- Overall Width: 4,220 mm
- Overall Height (Construction Height): 4,700 mm
- Wheelbase: 6,200 mm
- Turning Radius: 8.42 m
Travel & Mobility
- Travel Speed (Loaded / Unloaded): 20 / 23 km/h
- Tyre Configuration: 4 front / 2 rear
Weight
- Operating Weight: Approx. 73,400 kg
Operational Challenges Solved by the Hyster RS45‑31CH
In port operations, equipment purchasing is never just a technical decision. It is a choice that directly affects operational continuity, safety, and the credibility of management—especially in demanding environments such as the hot and humid climate of the United Arab Emirates.
One of the primary concerns in any terminal is unexpected downtime during peak operating hours. In such conditions, a reach stacker failure does not simply stop a machine; it disrupts workflow, causes congestion, and increases pressure on operational management.
The combination of a Cummins engine with a Spicer Off‑Highway transmission is selected precisely to mitigate this risk. This proven industrial drivetrain is designed to maintain consistent performance under high temperatures and heavy‑duty cycles, supporting uninterrupted operations in UAE ports.
Another critical concern is operator and cargo safety. In hot climates, operator fatigue and reduced concentration become hidden yet serious operational risks. Unstable handling, limited visibility, or unpredictable machine response can significantly increase the likelihood of incidents.

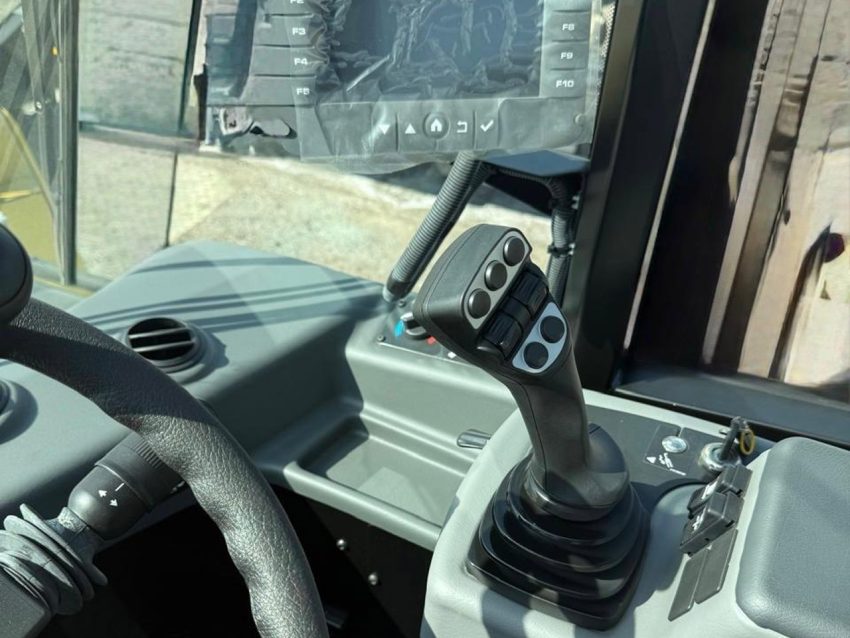

The RS45‑31CH’s stable chassis design, balanced weight distribution, and precise control systems deliver predictable, controlled operation—helping operators maintain focus, confidence, and safety throughout long working shifts.
Operational pressure in UAE ports is continuous rather than seasonal, often compounded by heat, humidity, and extended working hours. This machine is built for that reality. It is engineered for sustained heavy‑duty use, reliable system performance in high ambient temperatures, and consistent output without performance degradation.
The RS45‑31CH is designed for real‑world port environments—not merely to demonstrate specifications on paper.
Long‑term cost of ownership is another decisive factor. In harsh climatic conditions, accelerated wear and premature component failure can significantly increase operating costs. Choosing Hyster represents an investment in robust build quality, durable components, strong parts availability, and lower residual value loss—ensuring economic efficiency over the medium and long term.

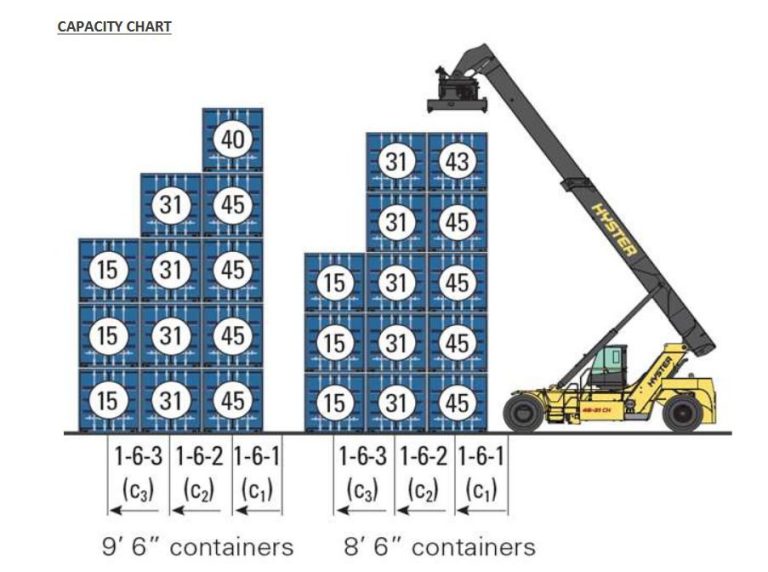

Container Stacking & Capacity
The Hyster RS45-31CH reach stacker is designed for safe and stable stacking of 8’6” and 9’6” containers across multiple rows and stacking heights.
According to the capacity chart:
Capability to stack up to 5 containers high, depending on container weight
Maintains operational capacity across different load positions:
- C1 (front row): maximum capacity
- C2 (middle row): balanced capacity with high stability
- C3 (rear row): controlled capacity for extended reach
Suitable for handling 20 ft and 40 ft containers
Weight distribution and chassis design ensure stability and operational safety, even when stacking in rear rows
This stacking configuration makes the RS45-31CH an ideal solution for high-density container yards and professional stacking operations.
Customer Experience After Purchase: Operational Peace of Mind & ROI
Over time, the most significant outcome of using this machine is increased peace of mind in operational management—even during the hottest months of the year.
Workflows become smoother, unplanned downtime is reduced, and operational planning can be carried out with greater confidence.
Operators work in a more predictable environment, which lowers mental fatigue, reduces human error, and relieves managerial pressure.
Ultimately, this machine is not merely a container handling tool; it is a reliable solution for stable, safe, and continuous port operations under the demanding climatic conditions of the United Arab Emirates.
